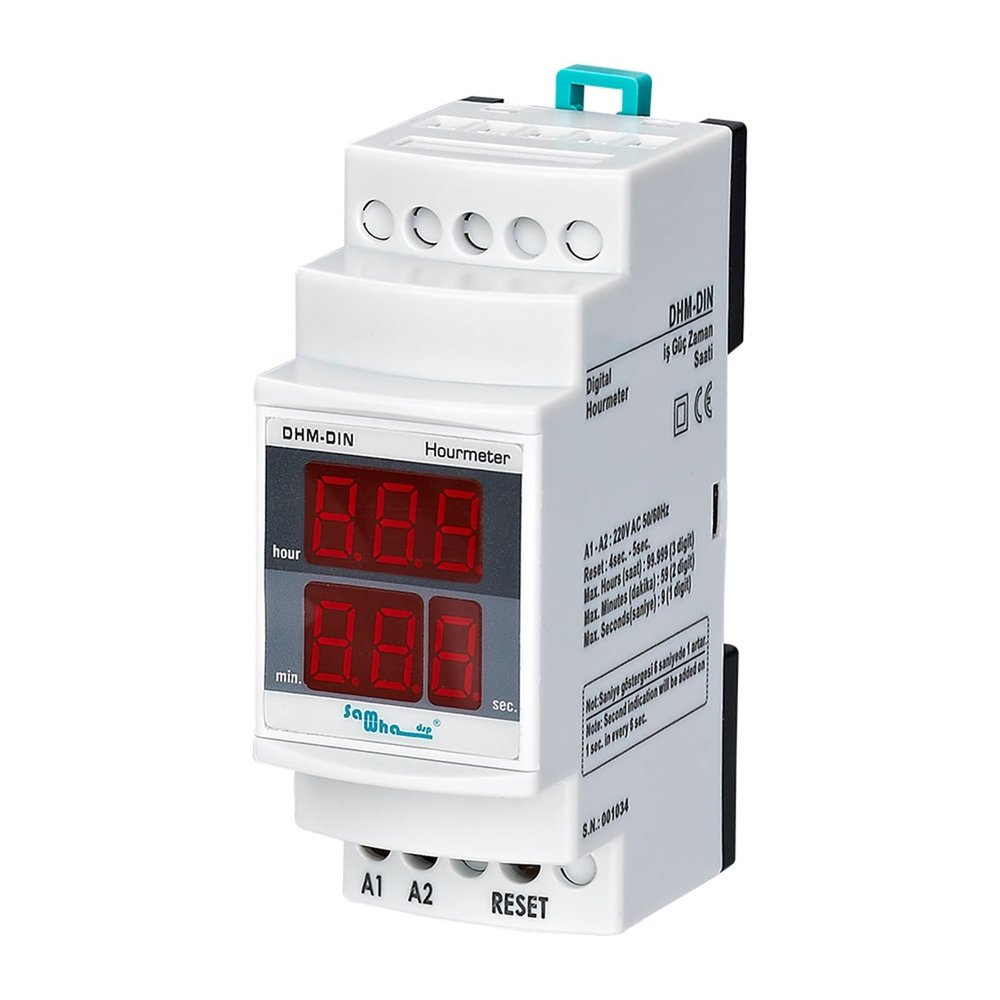

JMORCO - HDM-DIN Hourmeter (Size : Un 24VAC DC)

Description

• Relays

Relays
General
Hourmeter is designed for measuring time range (max 999.99hours) for any Loads that works with Network.
Usage and Working Principle
Please make the connections according to the diagram. When the product first energized, it starts counting the time from zero asan hour (3 digit), minute (2 digit), second (1 digit). If the device gets de-energized, it saves the latest time that has been reached. When itis energized once again it starts to count where it is left off. Device counts maximum untill 99.999 hours, after the time is up just second keeps moving on and the second ticks in every 6 seconds.
For reseting the device please press the reset button approximately 5 seconds so that can see all the digits turns into ZERO.
For reseting the time of DHM-DIN please use a stick that is non-conductor.
Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don't use any conductor or chemical
might damage the device. Make sure device works after cleaning
Warnings
Please use the device according to the manual.
Don't use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.
Specifications
Operating Voltage(Un)....: 12V AC/DC, 24VAC/DC, 110VAC, 220VAC, 380VAC
Operating Frequency.......: 50/60 Hz.
<;6VA
Operating Temperature..: -20C.....+55C
Time................................: 99.999hours
Display.....................: 2x3 digit 9.2mm display
Time Sensitivity......:%0.01
Connection Type.....: Terminal connection
Cable Diameter.................: 2,5mm
Weight................................: Max. 80gr.
Mounting...........................: Vertical assembled in
the panel or assembled on the din rail
<;2000meter
Dimensions
