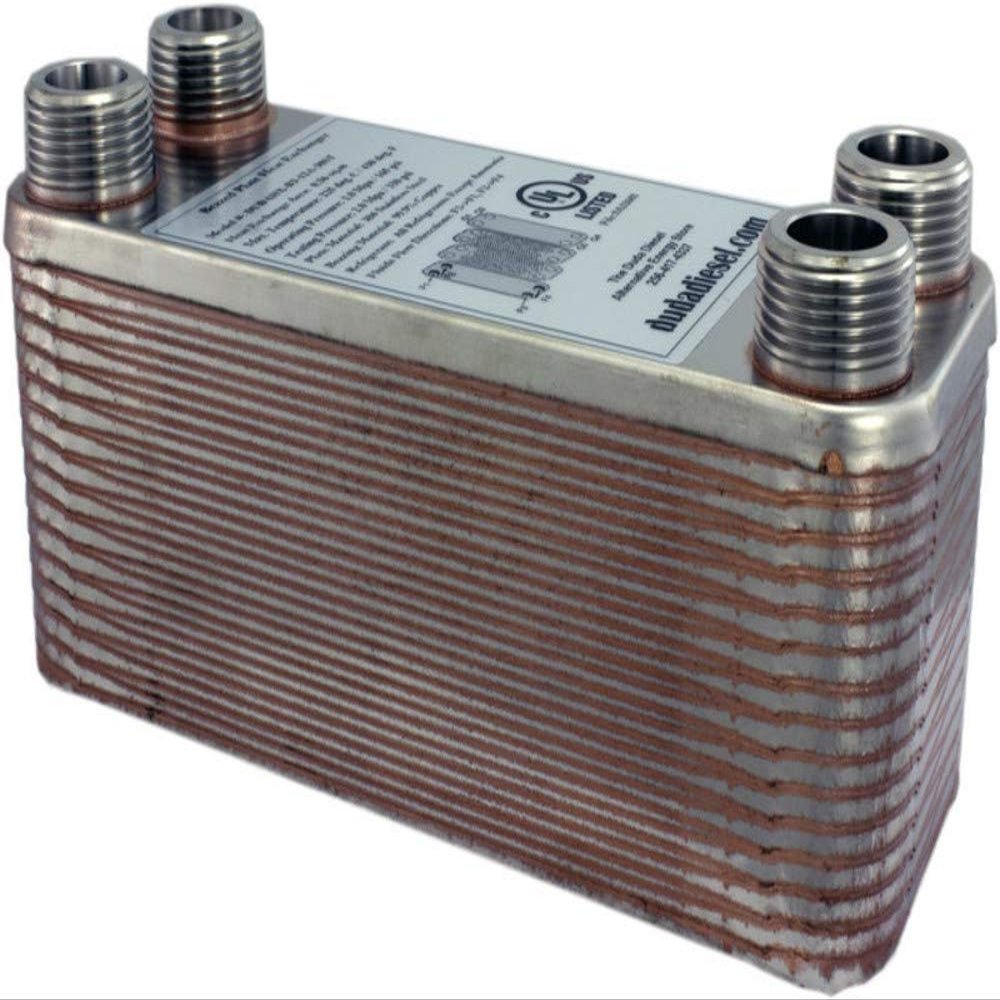

Duda Energy HX1230:M34 B3-12A 30 Plate Stainless Steel Heat Exchanger with 3/4" Male NPT Ports Copper Brazed, 2.9" Height, 2.9" Width, 7.5" Length

Description

• Length: 7.5'', width: 2.9'', height: 2.9'', heat exchange area: 3.88Ft, with m5-0.8 mounting studs
• Refrigeration capacity: 3400 - 17000 BTU/hour, design pressure: 145 psi, test pressure: 290 psi
• Design temperature:-319f to 430f,304 stainless steel inner plates brazed with 99.9+ percent Pure copper
• For refrigerants, water, oil, light alkali/acid, fuel, antifreeze, air & most liquids/fluids
• Corrosion resistant, UL Listed, CE, ISO 9001:2008, tuvreinland ISO9001:2000

Stainless steel plate heat exchangers . Brazed with 99.9+ percent Pure copper by Duda Energy . Plate heat exchangers have significantly good heat transfer rates because they use metal plates which have high heat conductivity rates and the plates are extremely thin. The plate heat exchangers also achieve high amounts of heat transfer through Convective forces with both working fluids. With large temperature differentials, great amounts of heat transfer can be achieved using a plate heat exchanger.This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat. Fluid a passes from the port on the left of the heat exchanger through every other channel created by the plates to the opposite end port on the left of the heat exchanger (looking at it the long way). fluid b passes from the port on the right through the other channels created by the plates and comes out the other port on the right side. The fluids are essentially touching each other through the plates and heat is transferred from the hot fluid to the cold fluid. (But the fluids do not mix).
